ID # 26622698

Kuhn - 3100 Series

Call for Price

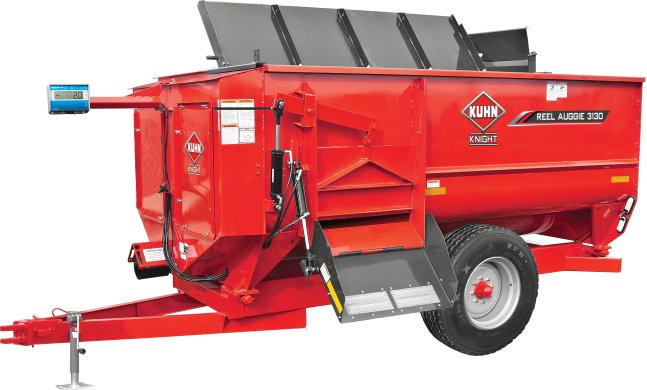

Kuhn 3100 Series Time-Tested Design

KUHN Knight 3100 Series Reel Auggie® mixers offer the same quality mixing performance and dependable service that has been their hallmark. The time tested, standard reel and auger design provides a fast, thorough mix for a fluffy, palatable ration.

KUHN Knight 3100 Series Reel Auggie® mixers offer the same quality mixing performance and dependable service that has been their hallmark. The time tested, standard reel and auger design provides a fast, thorough mix for a fluffy, palatable ration. Quality components and a rugged design help ensure reliability and long life. These mixers are available in trailer, truck and stationary models with capacities ranging from 150 to 200 ft³. These machines also offer a low standard loading height for easy loading with skid steers.
3100 Series
Sale Type
 PTO Drive 540 rpm 540 rpm
 PTO Minimum Power Requirement 45 HP (34 kW) 50 HP (37 kW)
 Reel Speed 5 rpm 7 rpm 4.5 rpm 5 rpm 7 rpm
 Lower Auger Flighting Diameter 16" (41 cm) 16" (41 cm) 16" (41 cm) 16" (41 cm) 16" (41 cm)
 Lower Auger Flighting Thickness - Sectional 3/8" (1 cm) 3/8" (1 cm) 3/8" (1 cm) 3/8" (1 cm) 3/8" (1 cm)
 Lower Auger Tube - Outside Diameter 4" (10.2 cm) 4" (10.2 cm) 4" (10.2 cm) 4" (10.2 cm) 4" (10.2 cm)
 Lower Auger Drive Shaft Diameter 2" (5.1 cm) 2 1/2" (6.4 cm) 2" (5.1 cm) 2 1/2" (6.4 cm) 2 1/2" (6.4 cm)
 Upper Auger Flighting Diameter 14" (36 cm) 14" (36 cm) 14" (36 cm) 14" (36 cm) 14" (36 cm)
 Upper Auger Flighting Thickness 3/8" (1 cm) 3/8" (1 cm) 3/8" (1 cm) 3/8" (1 cm) 3/8" (1 cm)
 Upper Auger Tube - Outside Diameter 4" (10.2 cm) 4" (10.2 cm) 4" (10.2 cm) 4" (10.2 cm) 4" (10.2 cm)
 Upper Auger Drive Shaft Diameter 2" (5.1 cm) 2 1/2" (6.4 cm) 2" (5.1 cm) 2" (5.1 cm) 2 1/2" (6.4 cm)
 Reel Diameter 52" (132 cm) 52" (132 cm) 52" (132 cm) 52" (132 cm) 52" (132 cm)
 Reel Driveshaft Diameter 3" (8 cm) 3 1/2" (9 cm) 3" (8 cm) 3 1/2" (9 cm) 3 1/2" (9 cm)
 Replaceable Sickle Knives on Upper Auger Standard Standard Standard Standard Standard
 Self-Sharpening Knives in Lower Auger Notches Standard Standard Standard Standard Standard
 Length - Haypan 84" (213 cm) 96" (244 cm) 84" (213 cm) 96" (244 cm) 96" (244 cm)
 Roller Chain Drive 60-80-100 60H -80-100H 50-60-80 60H-80-100H 60H-80-100H

Kuhn 3100 Series Hay Maxx® System

The Hay Maxx® System provides enhanced processing of a wide variety of materials. Hay and other bulky materials can be placed on the pan allowing them to be preprocessed by the upper auger before entering the mixing chamber. Additional aggressive, hardened-edge knives are added to the upper auger that help process the hay to the proper length before entering the mixing chamber.

Kuhn 3100 Series Roughage Maxx® System

The optional Roughage Maxx® System incorporates scalloped knives on the lower auger to maximize hay processing. The knives provide a more consistent particle length and more even blending. The result is a more uniform and palatable ration with reduced sorting for improved feed efficiency.




Kuhn 3100 Series Full Stainless Steel Liner

A full stainless steel liner completely covers all of the high-wear areas for unmatched dependability and long service life. The liner provides added protection when mixing more abrasive or corrosive materials, resulting in longer life of the unit shell.

Kuhn 3100 Series Scale Systems

 Different scale brands, models and options are available for all types of operations, ranging from the very basic to high-end feed-tracking programs that use a remote scoreboard display. Optional remote indicators are available for placement that will allow easier viewing.

your benefits

The Reel Advantage

Kuhn 3100 Series Gentle, Thorough Mixing

The Reel Auggie® mixer blends by gently lifting and tumbling all feed ingredients. This produces a fluffy, more palatable ration that promotes increased consumption and better herd health.

The gentle tumbling action of the large-diameter reel works together with the two side blending augers to produce end-to-end and side-to-side mixing action. The reel design eliminates much of the force and pressure inherent to most other mixer designs. This results in lower horsepower requirements, reduced machine wear and less feed breakdown.

Kuhn 3100 Series Consistent Mixing and Discharge

KUHN Knight reel mixers provide a consistent mix, even with small batches, for a balanced ration from beginning to end. Their quick, even discharge with a more complete cleanout helps save time and maximizes efficiency.

Kuhn 3100 Series Simple Feeding

 With a high discharge point, these mixers allow for the use of a simple slide tray in most feeding situations. The long tray makes it easy to feed deeper into most bunks while preventing feed loss from the wind. This dependable, low-cost option also results in less maintenance.

Built to Last
Kuhn 3100 Series
Sturdy Box Construction

 Sturdy end panels, combined with heavy-duty reel and auger hoppers, lengthen machine life. The upper and lower shear angles strengthen the mixer box, improve end-to-end mixing and increase hay processing efficiency. The large door opening allows for fast discharge.

Kuhn 3100 Series Heavy-Duty Undercarriage

 The rectangular tube frame construction, with steel bumper, provides strength, reliability and added unit protection. Large-diameter spindles provide optimum strength and durability. The adjustable and reversible clevis hitch adapts to different drawbar heights.

Kuhn 3100 Series Dependable Drive

 The dependable, heavy-duty roller chain drive runs in oil and has spring-loaded, self-aligning poly tighteners for long life. Final drive shafts and sprockets are splined for strength and serviceability.

Kuhn 3100 Series Auger & Reel Bearings

Self-aligning bearings are mounted on the outside of the mixer chamber for easy service and extra life. Polyethylene seals help prevent bearing contamination.

Nylon reel bearings, with polyethylene seals, provide simplicity, long-life and help prevent oil bath contamination.

Tailor Your Machine

3130_Action_02.jpg Multiple Discharge Options

To best suit your feeding needs, you can choose from a slide tray, chain and slat conveyor, or a 3-auger discharge to be equipped on your 3100 Series mixer.

Slide Tray

The high discharge point of the Reel mixers allows use of the simple, dependable, low-cost slide tray in most applications. It has simple hydraulic controls and the long discharge tray reaches deeper into bunks to prevent feed loss from the wind. Magnets are standard on slide tray.

Chain and Slat Conveyor

Rugged chain and slat conveyor options provide the ultimate in durability and long life. Heavy-duty components ensure reliable service and multiple conveyor length options offer unmatched flexibility to match different feeding situations.

Kuhn 3100 Series Trailer, Truck & Stationary Models

To suit your operation’s needs, KUHN Knight 3100 Series mixers are available in trailer or truck-mounted or configurations.

Trailer models are the most popular configuration as they are the most economical and versatile. Being detachable allows the tractor to be used elsewhere on the farm when not in use for feeding.

Truck-mounted models are a suitable option for those that have to feed cows at several different locations, with large travel distances. This option allows a feeder to quickly get from the mixing location to the feed bunk and back again.

Whether mixing wood chips or a ration for your livestock, KUHN Knight 3100 stationary mixers are ideal for maximizing feeding efficiency and mixer throughput on any operation. Stationary mixers are perfect for producers with centralized feed storage and multiple mixers running throughout the day. By incorporating centralized mixing, one loader operator is often able to keep multiple mixers constantly running, greatly increasing mixing capacity and reducing labor. Also, with the addition of delivery boxes, the mixers do not experience the downtime from driving location to location, and in turn do not receive the additional stress which can be seen from constant travel.
