Kuhn - PXL 100 Series

Call for Price

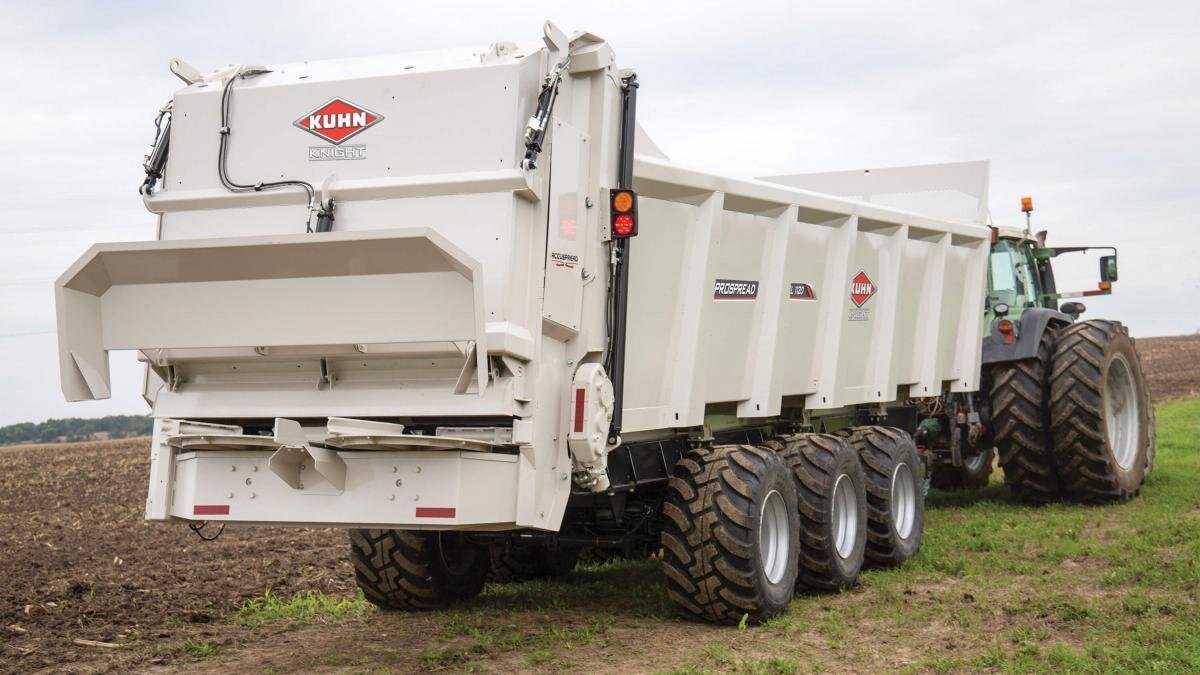

Kuhn PXL 100 Series
A Heavy-Duty Spreader for a Heavy-Duty Workload

Designed for agricultural and commercial applications that process a wide array of semi-solid and solid materials. With truck and trailer models available, and three discharge options, the PXL 100 spreaders are highly customizable to meet the needs of your operation.

The new KUHN Knight PXL 100 Series ProSpread® apron box spreaders are high-capacity, commercial spreaders that provide producers with a reliable, heavy-duty machine designed for high usage. The PXL 100 Series spreaders, with heaped capacities ranging from 865-1,230 ft³, are KUHN's largest box spreaders to date, and have been designed for agricultural and commercial applications that process a wide array of semi-solid and solid materials.

All three PXL models are available as trailer models, while the PXL 185 and 1100 are also available as truck-mounted models.  With three discharge options, horizontal beaters, VertiSpread® vertical beaters or an AccuSpread® spinner discharge, these spreaders will efficiently spread a broad range of materials giving you the ultimate versatility to match your operation's needs. This new Series of spreaders also features a rugged tandem or tridem undercarriage, cushioned tongue suspension, guillotine endgate and reversible apron. Save on fertilizer costs by combining your spreader with an optional scale system to monitor application quantities and take maximum advantage of the nutrient value of your manure.

PXL 100 Series
Sale Type
 Overall Length 365"/375"/380" (927/953/965 cm) 405"/415"/420" (1,030/1,054/1,067 cm) 465"/475"/480" (1,181/1,207/1,220 cm) 300"/310"/315" (732/787/800 cm) 340"/350"/355" (864/890/902 cm)
 Inside Box Length 252" (640 cm) 288" (732 cm) 360" (914 cm) 252" (640 cm) 288" (732 cm)
 Inside Box Depth 48" (122 cm) 48" (122 cm) 48" (122 cm) 48" (122 cm) 48" (122 cm)
 Inside Box Width Top: 94" (239 cm)
Bottom: 84" (213 cm)
Top: 94" (239 cm)
Bottom: 84" (213 cm)
Top: 94" (239 cm)
Bottom: 84" (213 cm)
Top: 94" (239 cm)
Bottom: 84" (213 cm)
Top: 94" (239 cm)
Bottom: 84" (213 cm)
 Overall Height - Top of Beaters 145"/148"/139" (368/376/353 cm) 145"/148"/139" (368/376/353 cm) 145"/148"/139" (368/376/353 cm) 145"/148"/139" (368/376/353 cm) 145"/148"/139" (368/376/353 cm)
 Overall Height - Top of Thrown Object Shield 140" (356 cm) 140" (356 cm) 140" (356 cm) 140" (356 cm) 140" (356 cm)
 Loading Height 114" (290 cm) 114" (290 cm) 114" (290 cm) 113" (287 cm) 113" (287 cm)
 Overall Tread Width 114" (290 cm) 114" (290 cm) 114" (290 cm) 102" (260 cm) 102" (260 cm)
 Ground Clearance 30"/33"/33" (76/84/84 cm) 30"/33"/33" (76/84/84 cm) 30"/33"/33" (76/84/84 cm) - -
 Unit Weight 22,300/23,000/23,300 lbs (10,115/10,433/10,570 kg) 24,000/24,700/25,000 lbs (10,886/11,204/11,340 kg) 26,000/26,800/27,000 lbs (11,793/12,156/12,247 kg) 15,000/15,600/15,900 lbs (6,804/7,076/7,212 kg) 16,600/17,200/17,500 lbs (7,530/7,802/7,938 kg)
 Minimum PTO Power Requirement 200 hp (150 kW) 220 hp (164 kW) 250 hp (186 kW) - -

Kuhn PXL 100 Series Sliding Tandem – PXL 1100

The PXL 1100 is designed with the capability to mechanically adjust the axle position to achieve the appropriate tongue weight for different applications. The three different axle positions optimize traction and flotation, which is especially important in less than ideal conditions. The design is very similar to the sliding axles on semi-trailers.

Kuhn PXL 100 Series Headland Deflector

The optional headland deflector, on models equipped with the AccuSpread® spinner, allows an operator to spread closer to a headland without overlapping an already covered area or spreading over field boundaries. By using the headland deflector, an operator will reduce spreading width from 45-60 feet down to 20-25 feet.

Kuhn PXL 100 Series Scale System

A 6- and 8-point scale system allows the operator to accurately determine how much material is in the spreader and how much is being applied to the field. The PXL 185 and 1100 are designed for a 6-point scale system, and the PXL 1120 is designed for an 8-point scale system.

Units equipped with electronic scales can also be fitted with optional scale indicators. These include the TopCon/Digi-Star NT 460 and Digi-Star NT 8000i. These allow an operator to better manage the material they are spreading. The NT 8000i has the capability of controlling apron speed to ensure the spreader delivers a constant rate.

Kuhn PXL 100 Series Manual Flow Control

For tractors that don’t have flow control capabilities, the manual flow control allows the operator to easily adjust the apron speed to suit specific materials or speeds. This increases flexibility when spreading a variety of materials.

your benefits

Commercial-Grade Foundation

Kuhn PXL 100 Series  All-Steel, Welded Construction

The PXL 100 Series features a 10-gauge sidewall, all-steel welded construction that provides a solid framework. A sidewall flare increases ease of loading and allows the operator to maintain a comfortable distance from the unit while loading. This design also allows the sidewalls to be supported by fewer, yet stronger exterior uprights.

An A-frame assembly keeps the sides and beater panels correctly aligned for strong box integrity, especially when the beater module is removed.

Kuhn PXL 100 Series Heavy-Duty, Sprung Undercarriage

The PXL 100 Series features a stout undercarriage to withstand heavy loads. Steerable axles come standard on tridem axles and optional on tandem. The PXL can be equipped with 600/55R radial flotation tires. All PXL units are equipped with standard hydraulically activated drum brakes. Brakes provide added protection for both the machine and the operator, especially in hilly conditions.

Kuhn PXL 100 Series Cushioned Tongue Suspension

Rubber springs, located on the tongue, provide a cushioned suspension that protects the unit and tractor from potential shocks due to loading and traveling. This results in longer life and reduced wear for both the unit and tractor drawbar, and results in a better working experience for the operator.

Kuhn PXL 100 Series Solid, Poly Floor

A ¾” solid, poly floor provides more strength and durability than individual tongue and groove boards while reducing friction. This means that less power is required for unloading versus alternative floors. The multi-piece design allows for expansion or contraction with changing temperatures. The poly floor also reduces winter freeze-down issues versus a steel floor.

Tailor Your Machine to Meet Your Spreading Needs
 Kuhn PXL 100 Series Truck or Trailer Models
  All three PXL models are available as trailer models, while the PXL 185 and 1100 are also available as truck-mounted models. For users who already have access to a power unit, a trailer model can be the perfect match. Heavy-duty undercarriages provide durability and long life. Trailed spreaders can easily be disconnected, leaving your power unit available for other applications.

A truck-mounted machine is a good choice for those of you who want faster, more convenient travel for longer hauls. Truck-mounted spreaders also increase operator comfort and are more maneuverable, especially when backing into tight areas.

Kuhn PXL 100 Series Multiple Discharge Options with Heavy-Duty Guillotine Endgate

All PXL 100 Series models, truck or trailer, come with your choice of horizontal beaters, VertiSpread® vertical beaters or the AccuSpread® spinner discharge, allowing you to customize your machine to your operation. A tested, robust gearbox beater drive design minimizes maintenance and increases longevity compared to traditional chain drive systems. All beater modules can be easily removed and safely stored, providing you with the versatility to use your machine for other tasks such as stockpiling, silage/haylage, or switching of modules to spread a different material.

All PXL units come standard with a heavy-duty guillotine endgate. The guillotine endgate provides excellent metering capabilities and material flow management in a streamlined design. Hydraulic cylinders raise the gate higher for heaped loads. Each guillotine endgate comes standard with a gate position indicator for operator convenience.

Kuhn PXL 100 Series AccuSpread® Spinner Module

The Gen II AccuSpread® spinner discharge offers consistent spreading of dry, flowable materials such as dry dirt compost, poultry litter and lime sludge. It provides the widest, most uniform spread pattern available. The helical-style beater flighting provides excellent material breakup, even in tough materials such as pen pack. A free-floating deflector ensures that the material is placed on the spinner discs correctly, but also allows for movement in case of an obstruction or surge in material. All horizontal beaters are fully enclosed by a hydraulic swing-out door. A durable plastic liner provides increases wear protection and reduces friction, preventing material buildup or freeze down.

Kuhn PXL 100 Series Horizontal Beaters

Horizontal beaters are most effectively used in spreading applications with dry, coarse materials such as pen pack or yard scrapings. They work well in situations where fast unloading and high application rates are desired.

The horizontal module on the PXL 100 Series models comes standard with three, 24” beaters, ensuring all material is processed completely. The ½” thick rooster combs provide good material breakup in a wide variety of materials. The bolt-on design allows the rooster combs to be easily replaced if worn or damaged. Module comes standard with rear beater pan.

Kuhn PXL 100 Series VertiSpread® Vertical Beaters

  VertiSpread® vertical beaters provide quality spreading performance for a wider variety of dry materials, from tough materials like pen pack, to finer materials like dry dirt compost. They can provide the same fast unloading and high application rates as horizontal beaters, but with a wider spread pattern and more consistent material breakup.

All PXL spreaders come with a heavy-duty vertical beater module, featuring 5/8” flighting and hardened beater tips mounted on a Berma SRT-22 gearbox drive. However, if you're not in need of the extra reinforcement, you can select the standard vertical beater module which features 1/2” flighting and standard steel beater tips mounted on a Berma SRT-20 gearbox drive.


Rugged, Innovative Drive

Kuhn PXL 100 Series Dual-Apron Design

To ensure quality and dependability, the PXL 100 Series models are equipped with a dual apron which helps distribute the load more evenly. The dual apron features 3/8” x 2” x 2 ½” steel slats that provide consistent feeding of material. The dual apron also offers rigidity and longevity for both apron chains and slats. The dual apron includes heavy-duty AL88XH pintle chains, accompanied by heavy-duty, self-cleaning sprockets welded to a 2” steel shaft. The pintle chain provides increased apron strength with ease of maintenance.

Kuhn PXL 100 Series Split-Apron Drive

Each gearbox is coupled directly to a driveshaft and provides power to its respective side, reducing the torsional twist on the apron shaft. The elimination of chains, due to the simple, all-gearbox design, greatly increases longevity while decreasing maintenance.

Kuhn PXL 100 Series Hydraulic Drive with Parallel-Shaft Gearboxes

Powering the apron are two hydraulic apron drive motors that provide infinite variability of the apron speed allowing you to match your desired application rate. A pressure relief valve provides protection for the apron drive.

The hydraulic drive is equipped with two parallel-shaft gearboxes and is specifically designed for commercial and heavy-duty applications. The elimination of the chain reduction requires less maintenance and provides longer service life.

Kuhn PXL 100 Series Reversible Apron

Tensioner springs provide constant pressure on the apron to allow reversal of the apron to easily clear any unforeseen obstruction or blockage at the beaters. The heavy-duty AL88XH chain ensures a consistent and reliable material flow to the beaters.
