Kuhn - FC 30 Series

Call for Price
Kuhn FC 30 Series
Quality Cut. Every Day. Every Crop.

KUHN FC 30 Series rear mounted mower conditioners deliver a clean cut with a wide cutting width and are ideal for large-acreage producers. When paired with a FC 25 front mount mower conditioner, they feature a total combined working width of up to 32’6”.

KUHN FC 30 Series rear mounted mower conditioners deliver a clean cut with a wide cutting width and are ideal for large-acreage producers. These mowers provide high reliability and quick cutting to help produce quality forage at a high output. The high-lift discs and Lift-Control® hydropneumatic suspension ensure excellent cut quality and crop throughput, even in the toughest conditions. Fast-Fit® knives and the Optidisc® Elite lubed-for-life cutterbar take the time and headache out of regular maintenance. Should the mower strike an obstacle while working, the continuous hydraulic safety automatically pivots up and back, minimizing the risk of damage. The ability to vary conditioning intensity to match harvesting windows is assured with the use of the 2-Speed DigiDry® finger conditioner and Diamond Block® rubber roller conditioner.

For the ultimate triple mower conditioner combination, pair one of these models with a KUHN FC 25 F Series front mount mower conditioner, and take productivity to a whole new level. The total combined working width of up to 32’6” knocks down large fields in no time, while exclusive features provide strong returns on investment by reducing maintenance and downtime. Whether you are a custom operator, dairy or beef producer, this combination unit, backed by years of research and development, will provide you with the cleanest cut and best conditioned crop.

FC 30 Series
Sale Type
  FC 8830 D FC 10030 D FC 10030 R
 Working width 27'3" (8.3 m) - 28'7" (8.7 m) in combination with a 10'2" (3.1 m) front mower 31'2" (9.5 m) - 32'6" (9.9 m) in combination with a 10'2" (3.1 m) front mower 31'2" (9.5 m) - 32'6" (9.9 m) in combination with 11' 6" (3.5 m) front mower
 Overlap with a front mower 1' - 1'8" (30 - 50 cm) with a 10'2" (3.1 m) front mower 1' - 1'8" (30 - 50 cm) with a 11'6" (3.5 m) front mower 1' - 1'8" (30 - 50 cm) with a 11'6" (3.5 m) front mower
 Transport width 9'8" (2.95 m) 11' (3.35 m) 11' (3.35 m)
 Transport height 11'10" (3.60 m) 13'1" (4.00 m) 13'1" (4.0 m)
Cutterbar Optidisc® Elite Optidisc® Elite Optidisc® Elite
 Number of discs 2 x 7 2 x 8 2 X 8
 Number of flat discs 2 x 5 2 x 6 2 X 6
 Blade retention system Fast-Fit® Fast-Fit® Fast-Fit®
 Cutting height 1.4" - 2.6" (35 - 65 mm) 1.4" - 2.6" (35 - 65 mm) 1.4" - 2.6" (35 - 65 mm)
 Removable Protectadrive® disc bearing stations Standard Standard Standard
Suspension Lift-Control® hydro-pneumatic Lift-Control® hydro-pneumatic Lift-Control® hydro-pneumatic
 Safety breakaway system Non-stop hydraulic Non-stop hydraulic Non-stop hydraulic
 Conditioning system DigiDry® steel fingers DigiDry® steel fingers Diamond Block® rubber roller
 Conditioning speed 755 or 1,000 rpm 755 or 1,000 rpm 800 rpm
 Conditioner width 111" (282 cm) 111" (282 cm) 111" (282 m)
 Swath width 4'9" - 6'11" (1.45 - 2.1 m) per cutterhead 6'1" - 7'10" (1.85 - 2.4 m) per cutterhead 6'1" - 7'10" (1.85 - 2.4 m) per cutterhead
 Suspension - travel 18.5" (47 cm) 18.5" (47 cm) 18.5" (47 cm)
 Wide spread - max 8' (2.44 m) 10'4" (3.15 m) 10'4" (3.15 m)
Hitch 3-point Cat. 3 Quick hitch compatible
(4N with optional bracket)
3-point Cat. 3 Quick hitch compatible
(4N with optional bracket)
3 - point Cat. 3 Quick hitch compatible
(4N with optional bracket)
 PTO speed 1,000 rpm 1,000 rpm 1,000 rpm
 Primary PTO 1-3/4" - 20-spline 1-3/4" - 20-spline 1-3/4" - 20-spline
 Free wheel Standard, integrated into lateral gearbox Standard, integrated into lateral gearbox Standard, integrated into lateral gearbox
 Friction slip clutch Standard Standard Standard
 Minimum PTO power requirement 225 hp (168 kW) 250 hp (186 kW) 250 hp (186 kW)
 Required tractor hydraulic connections 2 DA 2 DA 2 DA
 Control box Standard Standard Standard
 Road lights and signaling Standard Standard Standard
 Machine weight approx. 6,680 lbs (3,030 kg) 7,190 lbs (3,261 kg) 7,450 lbs (3,380 kg)
equipment FlexProtect™ Side Shields

  On encountering an obstacle, the KUHN FlexProtect™ side covers bend without breaking or damaging the mower. After the obstacle’s passage, the side shields automatically returns back to its original shape. Crop Lifters

 Recommended only for sorghum or other hard feeding crops. HD Knives

 Available through KUHN Parts, the HD knives provide increased longevity and durability when mowing in rocky and other difficult conditions.



your benefits

The Optidisc® Elite Cutterbar: A Clean and Consistent Cut

FC_OptidiscEliteCutterbarSil_01.png Lubed-For-Life Optidisc® Elite Cutterbar

The Optidisc® Elite cutterbar provides a flat, streamlined profile so that soil and crop residue do not accumulate and material flows smoothly, even in heavy, difficult crop conditions. These mowers come standard with the Fast-Fit® quick release knife system. Optidisc Elite cutterbars are designed and tested with a zero oil change interval. The highly-polished gears and synthetic gear oil ensure that this system does not require any regular internal maintenance, eliminating the need for cutterbar oil changes throughout the life of the machine.

OptidiscElite_DifferentialSpacing.png Differential Disc Spacing

The innovative design of the Optidisc Elite cutterbar offers exclusive differential disc spacing.

1- Less Distance for a Clean Cut - Narrower spacing at diverging discs provides greater knife overlap, which results in a clean cut, even when the grass is short or light.

2- More Distance for Easy Crop Passage - Wider spacing at converging discs provides more space for the crop to pass. Cut crop is quickly carried away from the cutting area, greatly improving the cut quality.

FC_Adjustments_02.jpg Standard Fast-Fit® Knives

The Fast-Fit® quick-release knife system allows an operator to rapidly change out cutting knives with the use of a simple tool, yet still retain optimum cut quality and knife life. With Fast-Fit, an operator can achieve up to 50% time savings over a standard system.

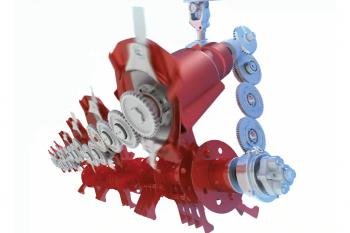

GMD_Elite_Protectadrive.png Protectadrive® Disc Bearing Stations

// Protectadrive® Safety: Every minute saved during the hay season is precious. Ultimate protection, from the externally removable Protectadrive disc bearing stations, provides maximum reliability and quick service. In the event of an impact between a disc and an obstacle, the shaft holding the disc can shear just above the bearing. This is thanks to its carefully dimensioned shear groove. As a result, the gear teeth are protected.

// Extra Rigidity Where it Counts: Disc bearing stations are attached by bolts that pass through the entire cutterbar. This is an exceptionally strong and secure attachment with no risk of mount being torn out of the cutterbar in case of shocks. The disc drive pinion is held precisely in place, all resulting in excellent reliability and reduced maintenance costs.

// Gear-to-Gear Power Transmission: Gear-to-gear power transmission, a staple of all KUHN disc mowers, allows for maximum power to be transferred through all gears in the cutterbar. Unlike other gear cutterbars, equal sized gears throughout reduces torque on the gear teeth and leads to unsurpassed reliability and longevity.

Exceptional Ground Adaptation and Maneuverability

Kuhn FC 30 Series Active Non-Stop Safety Breakaway

 No farmer can afford to damage his mower during the peak of the season because of an unnoticed obstacle or maneuvering error. On the new rear units, the mowing unit pivots rearward around the bracing pin when hitting and obstacle. In this moment, oil is transferred toward the suspension cylinder. The resulting pressure increase facilitates the mowing unit raising to clear the obstruction. Return to the initial working position is carried out nonstop.

Kuhn FC 30 Series Lift-Control Hydropneumatic Suspension

Lift-Control is much more than just a suspension system with a nitrogen accumulator replacing the traditional spring. The main advantage of the Lift-Control system is derived from the exclusive way in which kinetic forces that act on the cutterbar are utilized. KUHN engineers have succeeded in making a dynamic suspension system, as opposed to the passive system most commonly used.
With the Lift-Control system, as the force exerted on the cutterbar increases, the suspension system automatically lightens the cutterbar. The greater the force, the lighter the cutterbar.
Benefits include:

// Constant ground pressure

// Non-stop safety breakaway

// Excellent terrain following

// Less soil in the crop

// Minimize torn up turf

Kuhn FC 30 Series Separate Hydraulic Lifting of Units

The possibility of lifting both rear mowing units individually via hydraulic cylinders is a big advantage on wedge-shaped fields and permits quick and easy maneuvers. This can be done directly from the cab. At the same time the system ensures a reduced ground pressure: beneficial to plant regrowth, cutterbar wear and power requirements.

Kuhn FC 30 Series Transport with Ease

Transporting a triple combination, in an upward folded position, leaves it closer to the tractor and allows the machine to have compact dimensions on the road, a center of gravity close to the tractor and a reduced load on the rear tractor axle.

Uniform Crop Conditioning

Kuhn FC 30 Series DigiDry® Finger Conditioner

The DigiDry® finger conditioner provides consistent drying of grass and legume crops in various conditions with little maintenance. Wide rotor, fingerstyle conditioning increase crop-on-crop rubbing to strip off the waxy cuticle helping the steams dry at the same rate as the leaves. The built-in breakback feature normally protects against damage from rock and other foreign materials.

Kuhn FC 30 Series Diamond Block® Conditioning

Diamond Block® conditioning rollers stand out from the competition as the only rubber roller set designed exclusively for a disc mower. The horizontal staggered diamond pattern gives more points for the crop to be crimped as it flows off the disc at an angle. Adjustment of the roll pressure and roll gap is simple and can be done quickly in the field.

Kuhn FC 30 Series Direct Drive Design

The direct drive design to the conditioner provides easy access for servicing and fully eliminates belts. Reliability is greatly improved when working in longer crops such as ryegrass.

Kuhn FC 30 Series Conditioning Adjustments

Easily adjust between two rotor speeds, 755 or 1,000 rpm, via a handle on each unit. Single-point conditioning intensity adjustment speeds up and adapts to differing crop types or volumes. Conditioning hood adjustment is also very simple as it is at one single point per head.

Kuhn FC 30 Series Built-In Rotor Protection

To help prevent damage to the conditioner gearbox in the unlikely event of an overload or ingestion of a large foreign object, the shear bolt hub allows the operator to clear the obstruction from the conditioner, quickly rotate the inner hub into position, install the new shear bolt and return to mowing.
