Kuhn - GA 300 GM / 3201 GM / 3200 GT

Call for Price

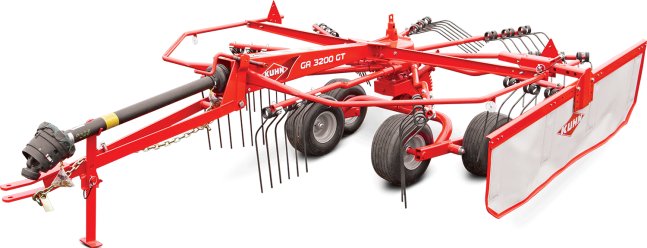

Kuhn GA 300 GM / 3201 GM / 3200 GT
Decades of Proven Reliability

KUHN GA 300 GM, 3201 GM and 3200 GT rotary rakes, with a working width of 10’6”, are the right machines for farms with smaller acreages and a low- or medium-horsepower tractor. Equipped with nine tine arms, these rakes feature a 10’6” working width.

As the pioneer of rotary rakes with guided tine arms, KUHN rotary rakes have always been considered one of the premier rotary rakes available on the market. The 3-point mounted GA 300 and 3201 GM and trailed GA 3200 GT are no exception. With these machine, you can obtain superior raking performance, while keeping the leaves of your crop intact and allowing you to harvest at peak nutritional value.



GA 300 GM / 3201 GM / 3200 GT
Sale Type
  GA 300 GM GA 3201 GM GA 3200 GT
 Working width - includes windrow 10'6" (3.2 m) 10'6" (3.2 m) 10'6" (3.2 m)
 Clean swept width 7'3" (2.2 m) 7'3" (2.2 m) 7'3" (2.2 m)
 Windrow width 2'7" - 3'11" (0.8 - 1.2 m) 2'7" - 3'11" (0.8 - 1.2 m) 2'7" - 3'11" (0.8 - 1.2 m)
 Transport width 9'1" (2.8 m) 5'9" (1.8 m) 5'9" (1.8 m)
 Windrow former Tine screen Curtain Curtain
 Foldable safety guards - Standard -
 Rotor diameter 8'8" (2.7 m) 8'8" (2.7 m) 8'8'' (2.7 m)
 Number of tines per tine arm 3 3 3
 Number of tine arms 9 9 9
 Fully enclosed gearbox Standard Standard Standard
 Removable tine arms - Standard -
 Tandem axles Optional Optional Optional
 Tires 15 x 6.00-6 15 x 6.00-6 18 x 8.50-8
 PTO speed 540 rpm 540 rpm 540 rpm
 Wide angle PTO shaft - - Standard
Hitch 3-point, Cat 1 and 2 3-point, Cat 1 and 2 Drawbar
 Minimum PTO power requirement 20 hp (15 kW) 20 hp (15 kW) 20 hp (15 kW)
 Machine net weight approx. 631 lbs (286 kg) 820 lbs (372 kg) 661 lbs (300 kg)
 Safety chain - - Standard
 Shipping information lbs: GM rakes 2 per crate*, GT rake 1 per crate 1,389 lbs (630 kg) 1,764 lbs (800 kg) 900 lbs (408 kg)
your benefits

Proven and Durable Components to Assist You with Raking

Kuhn GA 300 GM / 3201 GM / 3200 GT Fully Enclosed Gear Case

The fully enclosed single-stage gearbox is grease filled and sealed to be maintenance free ensuring a long life. For additional durability, the tine arm holders are fixed on both the upper and lower gearcase covers. The gearbox houses a cam track with a profile optimized for fast lifting action that creates a well-formed windrow while maintaining high clearance over the windrow.

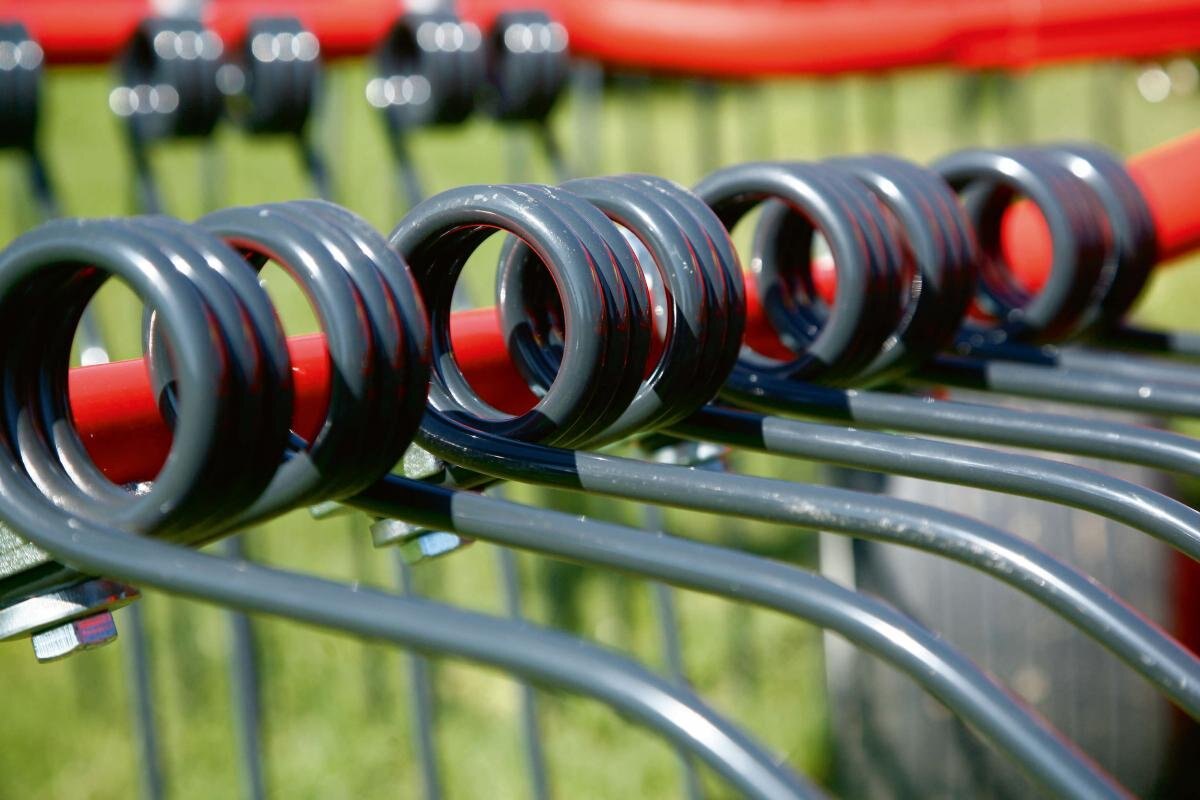

Kuhn GA 300 GM / 3201 GM / 3200 GT Heavy-Duty Tines

KUHN tines rake the crop gently, yet thoroughly, even in dense, heavy crop. Their heat-treated steel construction helps ensure a longer service life and maximum resistance to fatigue. The floating tine attachment features large-diameter coils that reduce the risk of wear. The tine height is easily and accurately controlled to collect all of the crop and not damage the stubble. As with all rotary rakes, proper tine height adjustment is essential to maximize service life.

Kuhn GA 300 GM / 3201 GM / 3200 GT Rotor Wheels

The rotor wheels on KUHN rotary rakes are positioned extremely close to the tines. This allows the tines to follow ground contours minimizing contact with the ground to avoid incorporating impurities into the windrow.

Easy Adjustments

Kuhn GA 300 GM / 3201 GM / 3200 GT Adjustable Windrow Curtain or Screen

The windrow width can be varied to match your crop conditions by moving the curtain in and out. The curtain height and the front-to-rear positioning can also be adjusted to meet your specific needs. Adjustable screen on the GA 300, Parallelogram curtain on the GA 3201, Adjustable curtain on the GA 3200 GT.

Kuhn GA 300 GM / 3201 GM / 3200 GT  Simple Height Adjustment (GA 3200 GT Only)

For optimum raking, the tines should be set as low as needed to cleanly rake the crop without touching the ground. As stubble height varies, the height of the tines can also be adjusted.

Easy Maneuverability in the Field

Kuhn GA 300 GM / 3201 GM / 3200 GT Prop Wheel

All mounted KUHN rotary rakes can be fitted with an additional prop wheel at the front of the rotor. This additional wheel provides improved raking performance and enhanced following of changing ground contours.

Kuhn GA 300 GM / 3201 GM / 3200 GT CV PTO

For maximum maneuverability without PTO chatter, the GA 3200 GT is fitted with a CV PTO as standard equipment. This allows for the tightest turns in field corners without the worry of driveline chatter and wear.
