Kuhn - SR 100 GII Series

Call for Price
Kuhn SR 100 GII Series
Premium Performance that Sets the Standard

Available in 8-, 10- and 12-wheel configurations, the SR 100 GII Series SpeedRake® wheel rakes feature working widths ranging from 15’10” to 23’4”

Since the first introduction, the SpeedRake® name has been recognized for quality. The KUHN SR 100 GII Series SpeedRake wheel rakes have taken that reputation even further, combining the proven quality, reliability and simplicity that you expect, with next level features to excel even further beyond the competition.   Refined styling, higher strength materials and improved options deliver the most value for your equipment dollars. Exclusive in this machine class, the patented windrow adjustment feature allows independent adjustment of the windrow width and raking width to best match specific crop and pickup needs. A built-in mechanical rake arm flotation slot provides superior terrain following without the need for a tractor with hydraulic float. The simple selector valve provides fast, easy switching between transport and field positions to save time and maximize productivity.

SR 100 GII Series
Sale Type
  SR 108 GII SR 110 GII SR 112 GII
 Minimum working width 15'10" (4.8 m) 16'11" (5.2 m) 18'9" (5.7 m)
 Maximum working width 18'10" (5.7 m) 21'2" (6.5 m) 23'4" (7.1 m)
 Number of rake wheels 8 10 12
 Rake wheel bearings Tapered roller bearings with grease zerk Tapered roller bearings with grease zerk Tapered roller bearings with grease zerk
 Center kicker wheel Optional 55" (1.4 m) wheel Optional 55" (1.4 m) wheel Optional 55" (1.4 m) wheel
 Rake wheel diameter 55" (1.4 m) 55" (1.4 m) 55" (1.4 m)
 Tine diameter 9/32" (7 mm) 9/32" (7 mm) 9/32" (7 mm)
 Safety chain Optional Optional Optional
 Transport wheels and tires ST 205 / 75 D-15" ST 205 / 75 D-15" ST 205 / 75 D-15"
 Minimum windrow width 3' (0.9 m) 3' (0.9 m) 3' (0.9 m)
 Maximum windrow width 7' (2.1 m) 7' (2.1 m) 7' (2.1 m)
 Transport width 8'10" (2.7 m) 8'6" (2.6 m) 9'4" (2.8 m)
 Transport length 17'6" (5.3 m) 19'1" (5.6 m) 21'8" (6.6 m)
 Hitch Standard clevis (Optional 2-5/16" ball hitch) Standard clevis (Optional 2-5/16" ball hitch) Standard clevis (Optional 2-5/16" ball hitch)
 Machine weight approx. 1,270 lbs (576 kg) 1,425 lbs (646 kg) 1,624 lbs (736 kg)

Kuhn SR 100 GII Series Kicker Wheel

The optional kicker wheel has a 55” diameter rake wheel, the same size as the main rake wheels, and can be easily raised and lowered hydraulically from the tractor seat.

Kuhn SR 100 GII Series Windguards

Windguards improve crop flow along the wheels for a more uniform windrow. The durable, HDPE guards are UV stable and improve raking performance in windy conditions. They also reduce wrapping in difficult conditions, such as tall, stemmy crop and corn stalks.

Kuhn SR 100 GII Series Adjustable Clevis or Ball Hitch

A clevis hitch comes standard with all models. A ball hitch is optional.

Kuhn SR 100 GII Series Tandem Axle

The tandem axles pivot up and down. This is a simple bolt on addition keeping the original tire. They are ideal for smooth and stable operation over difficult terrain.

your benefits

Simple, Yet Durable Design

Kuhn SR 100 GII Series Welded Main Frame

The rear frame is completely welded giving you an incredibly long service life compared to bolted-on components. The delta joint unifies and strengthens the main frame which allows crop to easily fall back into the windrow. The hydraulic hoses run through the tongue and main frame for added protection and aesthetic appeal.

Kuhn SR 100 GII Series High-Clearance Design

The high-clearance frame design provides increased capacity allowing for even more crop flow and excellent windrow formation. This allows excellent ground clearance for entering and exiting fields more easily.

Kuhn SR 100 GII Series Offset Rake Beam Lift

The patented rake wheel lift orientation raises the front wheels first when activating the hydraulic valve. When raking into a headland, it allows the windrow to form completely with the rear wheels raising after the front wheels to complete the windrow and not leave two short windrows at the end. Rake arms also lift faster and more smoothly for increased productivity.

Kuhn SR 100 GII Series 55” Rake Wheels

The 55” diameter rake wheels can move large volumes of crop. The right- and left-side wheels are designed to gather the crop smoothly along the wheels while forming a uniform windrow. The curved, elkhorn-style rake arms provide additional clearance for high-volume crops and reduce bunching while raking.

Versatile to Meet Your Raking Needs
Kuhn SR 100 GII Series
Independent Windrow Width Adjustment

The windrow width can be adjusted independently of the overall raking width. This gives you the ability to tailor to specific volumes of crop or to match differing pickup widths. You can also rake at a steeper angle in heavier crops and maintain a narrow width or rake at a flatter angle in thinner crops and form a wider windrow.

Kuhn SR 100 GII Series Working Width Adjustment

Choose one of four set positions, on the mainframe and turnbuckle, to easily set your working width to match your specific crop and field conditions. Turnbuckles provide precise adjustment of the raking angle. Rake angles are conveniently matched on each side of the machine by using angle gauges integrated into the rake beams.

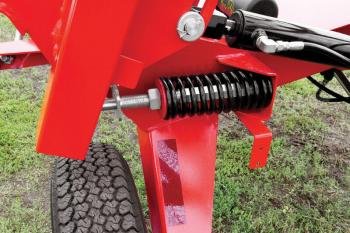

Kuhn SR 100 GII Series Adjustable Spring Suspension

The large flotation coil springs are positioned horizontally on the back of the frame and are protected during work. The coil springs provide uniform flotation over field contours and reduce rake wheel wear by decreasing ground pressure. The built-in mechanical rake arm float slot eliminates the requirement for the hydraulic float to be engaged on the tractor.

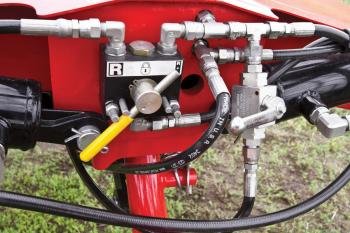

Kuhn SR 100 GII Series Raking Side Adjustment

A simple selector valve saves you time when going back and forth from distant fields. Easily choose from one of three adjustment positions:

// Standard “V” raking (left- and right-side raking)

// Right-side only raking

// Transport

Safe and Stable Transport

Kuhn SR 100 GII Series Stable Transport

When raised for transport, the rake beams fold flat and over center to provide excellent stability. The link rods rotate the beams and provide additional support for the rake when in transport position. By having the arms positioned over the center of the machine, it provides the narrowest width possible and keeps the rake’s center of gravity between the tires.
