Practical, Economical, Multi-Purpose Machines

Well suited for the farm hobbyist and hay producers with small- to medium sized operations, these universal haymakers are made from heavy-duty components to give the machine a long life. Both models of the HayBob easily adjust to field contours when tedding and raking.

The KUHN HayBob 300 and 360 tedder/rake combinations are universal haymakers, ideally suited for the farm hobbyist and hay producers with small- to medium-sized operations. The HayBob offers excellent performance in grass and delicate legume hay crops, and provides through tedding to uniformly spread wet crops for fast drying. Easily converted from tedding to raking, these machines provide gentle crop handling and produce fluffy, well-formed windrows. The HayBob provides a practical and economical alternative for producers who wish to save the cost of multiple specialized machines.

Specifications

Model

HayBob Series

Category Name

Agriculture

Year

2024

Sale Type

New

Manufacturer

Kuhn

Model

HAYBOB 360 TEDDER/RAKE

Tires

15 x 6.0-6 (4-ply)

PTO Speed

540 rpm

Hitch Type

3-point, Cat. 1 & 2

Safety Guards

Standard

Number Of Rotors

Pivoting Headstock

Standard

Wheel Height Adjustment

Standard

Number Of Tines Per Rotor

Machine Net Weight Approx.

760 lbs (345 kg)

Tedding Or Raking Position

Left-side

Working Width When Tedding

9'10" (3.0 m)

Minimum PTO Power Requirement

20 hp (15 kW)

PTO With Slip Clutch Protection

Standard

Working Width When Raking - Double Windrow

23'8" (7.2 m) 2 passes

Working Width When Raking - Single Windrow

11'10" (3.6 m)

Shipping Information: 1 Machine Per Crate - Gross Total Weight

878 lbs (398 kg)

your benefits

Dual Optimization for Tedding and Raking

Kuhn HAYBOB 360 TEDDER/RAKE Tine Height and Rotor Pitch Angle

The tine height and rotor pitch angle are quickly optimized for both tedding and raking by adjusting wheel columns and the tractor’s top link to obtain the desired setting.

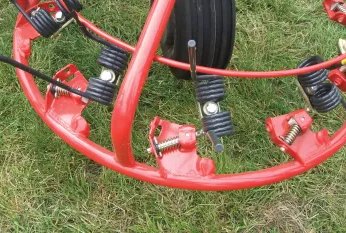

Kuhn HAYBOB 360 TEDDER/RAKE Rotor Basket

Each rotor basket is equipped with narrow and wide tines to obtain a wide working area for high-capacity operation and faster working speeds.

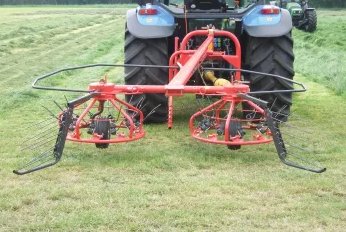

Kuhn HAYBOB 360 TEDDER/RAKE Central Swath Divider

A central swath divider ensures that crop is evenly distributed between the rotors when tedding to provide the most uniform distribution of crop for rapid drying.

Easily Adjust to Field Contours

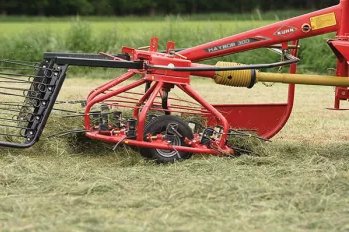

Centrifugal Force Controlled Tines

The centrifugal force-controlled, horizontal tines self-adjust to field contours as they float through stubble to cleanly pick up crop, providing faster working speeds with little risk of contamination when tedding and raking.

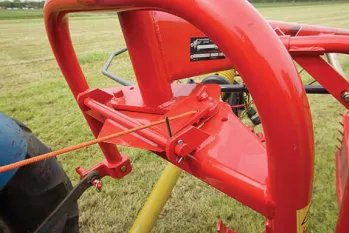

Kuhn HAYBOB 360 TEDDER/RAKE Pivoting Headstock with Lock

The pivoting headstock unlocks while at work to closely follow the path of the tractor when turning, without damage to the windrow. When raised for transport, the headstock automatically centers and locks for added safety.

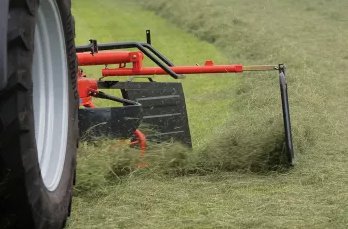

Kuhn HAYBOB 360 TEDDER/RAKE Adjustable Swath Boards

Adjustable swath boards produce neatly formed windrows and may be offset to form a double row in three passes.

Heavy-Duty Components

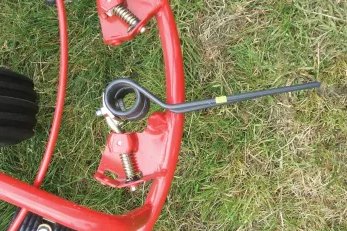

Kuhn HAYBOB 360 TEDDER/RAKE Mounted, Pivoting Tines

Twenty individually mounted, pivoting tines feature nylon bearings to provide reliable performance and operation that is practically maintenance-free.
